Great Planes CAP232

WING AREA: 630 SQ. IN.
FLYING WEIGHT: 103oz
WING LOADING: 23.5oz per SQ. FT.
MOTOR: Hacker A50 12L Outrunner
PROP: apc 17x10
CELLS: ThunderPower 6S3P-6000 ProLite
AMPS: 60
WATTS PER LB. 210

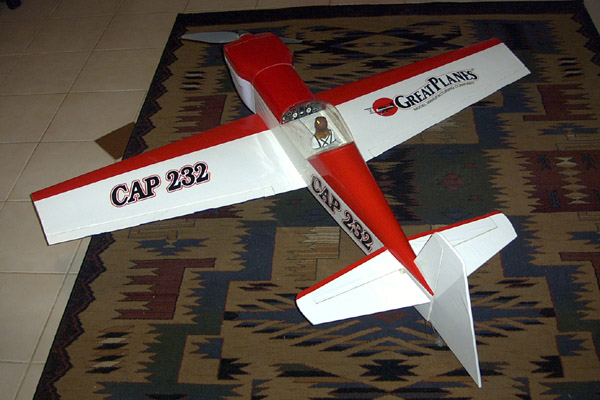

The Great Planes CAP232 equipped with 2 Hitec 225BB and 1 Hitec 85BB servos, Hitec Electron6 Receiver, 2S-730ma ThunderPower receiver battery with 6V regulator, Hacker A50 12L motor, Hacker Master 48 ESC, and a 6S3P-6000ma ThunderPower ProLite Lithium Polymer battery.

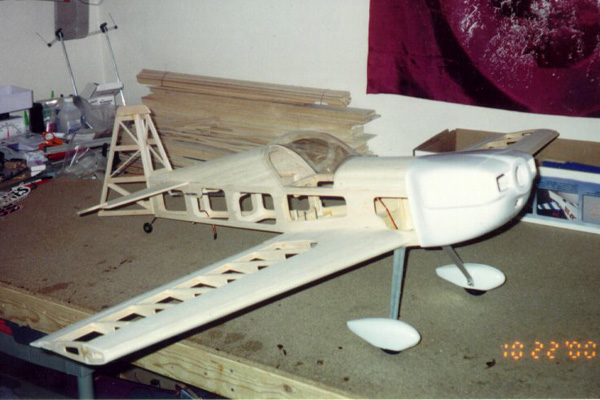

Built per the planes but with most of the ply parts replaced with balsa.

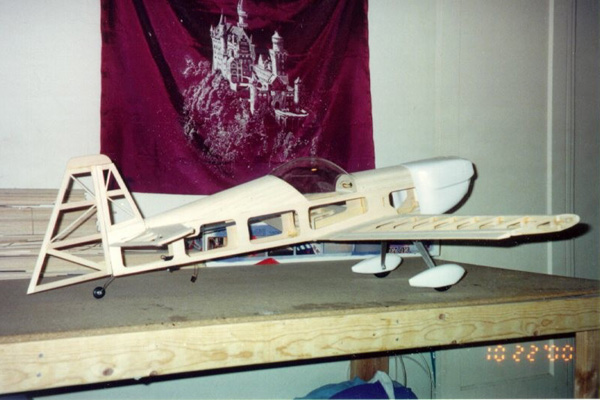

By replacing all ply but 2 formers, fuse doublers and firewall I was able to save over 8oz of wood weight.

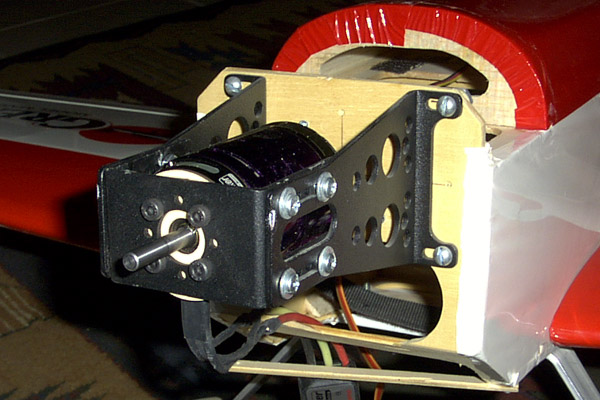

The hacker A50 secured to the firewall with a B50 mount.

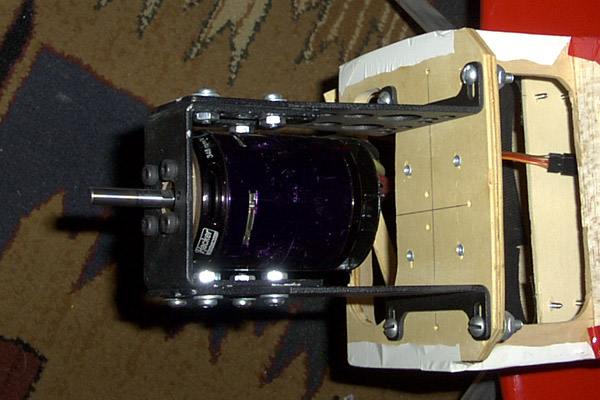

Another view

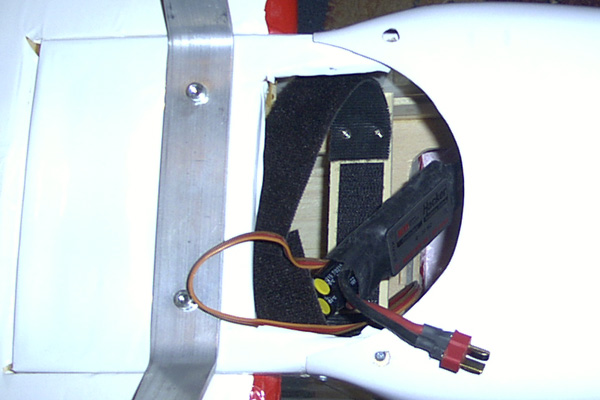

The batteries slide in under the cowl and are secured by Velcro straps.

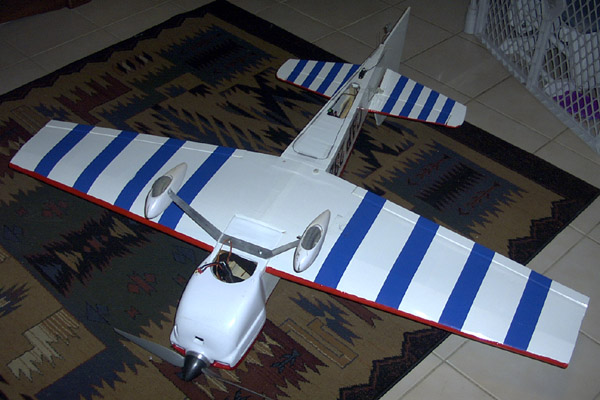

I used blue strips on the bottom.  No trouble telling orientation.
